INDUSTRIAL PURE WATER APPLICATION

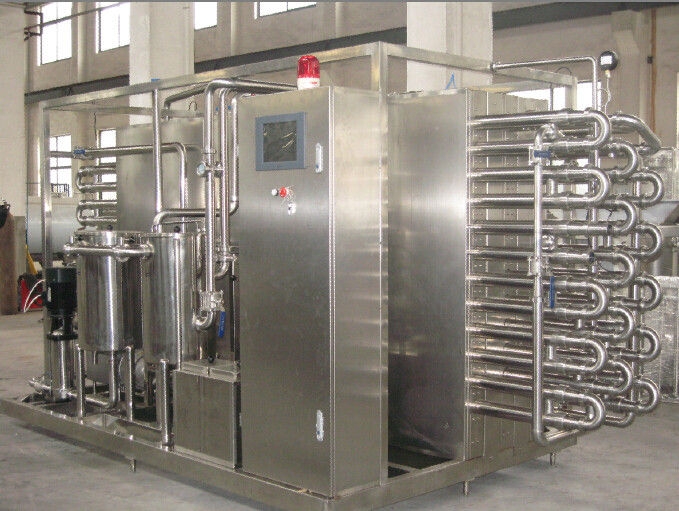

Stainless Steel Beverage Pasteurizer Machine , Pasteurization Equipment for Juice Line
Specifications and Descriptions:
| Model | Diameter |
A material inlet Temperature |
Thermal insulation Time |
Sterilization Temperature |
The material outlet Temperature |
Water inlet temperature |
| LG-UHT-1 | 1000 | 5ºC | 4-15 | 105~143ºC | 20 ºC | ≤2ºC |
| LG-UHT-2 | 2000 | 5ºC | 4-15 | 105~143ºC | 20 ºC | ≤2ºC |
| LG-UHT-3 | 3000 | 5ºC | 4-15 | 105~143ºC | 20 ºC | ≤2ºC |
| LG-UHT-4 | 4000 | 5ºC | 4-15 | 105~143ºC | 20 ºC | ≤2ºC |
| LG-UHT-5 | 5000 | 5ºC | 4-15 | 105~143ºC | 20 ºC | ≤2ºC |
|
Steam Pressure |
Steam Consumption |
Compressed air Pressure |
Compressed air Consumption |
External diamension |
Total weight of machine |
| 0.5MPa | ~150Kg/h | 0.6MPa | 50L/H | 3500×2000×2500 | 1700kg |
| 0.5MPa | ~210Kg/h | 0.6MPa | 50L/H | 3500×2000×2500 | 2000Kg |
| 0.5MPa | ~280Kg/H | 0.6MPa | 60L/H | 4500×2500×2200 | 2200Kg |
| 0.5MPa | ~350Kg/h | 0.6MPa | 60L/H | 5000×2000×2200 | 2500Kg |
| 0.5MPa | ~420Kg/h | 0.6MPa | 70 L/H | 5000×2000×2200 | 2800kg |
Description:
Process parameters are 5 ºC, 65 ºC (homogeneous) → 137 ºC (3-5S) → 20 ºC -25 ºC. The system uses the ultra high temperature treatment method, so that the liquid dairy products, tea beverage, fruit juice to meet strict sterilization, and then transferred to the aseptic packaging, the sterilization temperature is 137 ºC, temperature holding time is 3-5S, so as to keep the beverage, dairy nutrition and flavor of the original color. The device has the advantages of high heat recovery rate, compact structure, beautiful appearance, temperature control; the products are hot filling, discharge temperature control, can also be cold fil
