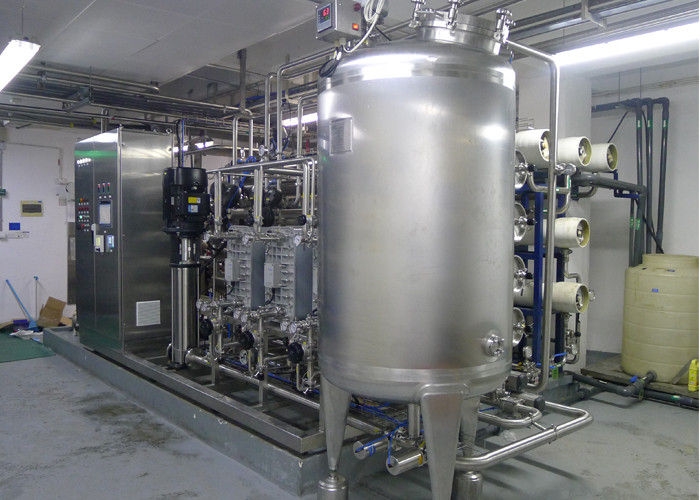

Ultra pure water RO water purification system with EDI for WFI 15m3/h

Ultra pure water reverse osmosis water purification system with EDI for WFI 15m3/h

1. Specifications

Model		Chem500	Chem1000	Chem2000	Chem3000
Process flow		Booster pump+sand/softener/activated carbon+precision filter+RO+EDI
OperationParameter
Raw water		municipal water: TDS<300ppm, 5-35℃, 2.0-4.0 Kgf/cm2
Feed flow	L/h	1000	1500	3000	4500
Permeate water capacity	L/h	500	1000	2000	3000
Recovery rate	%	62.5	66.7	66.7	66.7
Resisvity	MΩ	>5
Power	KW	2	3	4	6.5
Pretreatment filteration system
Head Pressure	m	40
Multi-media filter size	mm	300x1500	450x1500	500x1500	600x1500
		Automatic control valve
Activated carbon filter	mm	300x1500	450x1500	500x1500	600x1500
		Automatic control valve
Water softener	mm	300x1500	450x1500	500x1500	600x1500
		twin-softener, uninterrupted service flow, automatic control valve regeneration
Valves and piping		SS304/UPVC depend on application purpose
RO main water treatment system
High pressure pump flow	m3/h	1	1.6	3.2	5
Head pressure	m	180 (inverter control)
Power	kw	1.5	2.2	3	4
RO membrane element		4040x3	4040x6	4040x10	4040x15
Instrument		Flow transmitter, pressure gauge, conductivity meter, resistivity meter
Electric control system		Siemens PLC & touchscreen, Schneider
Documents		DQ/IQ/OQ, and assist clients to fulfill PQ, FAT/SAT report Operation manuals Engineer drawing, electric schematic welding records/deactivation, pressure test records, Certificate of Quality

2. Description:

Our commercial and Industrial Reverse Osmosis water treatment equipment / Systems are pre-engineered to economically produce high purity water by removal of dissolved minerals, bacteria, particles, and organic impurities from tap, well, underground water.

2.1 Standard Features

High rejection membrane elements
5-micron sediment security filter / big blue
Automatic inlet solenoid valve
Product water conductivity monitor | meter
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Corrission resistant high pressure pumps
FRP / SS pressure vessel
Automatic PLC controller
Factory tested

2.2 Options

Online hardness monitor
PH / ORP meter
Water Disinfection system: Ozonization / UV sterilizer
Post DI polishers

2.3 Construction materials

Skid frame: Stainless steel 304ss or exposy coated carbon steel
High pressure pumps: stainless steel 304ss or 316L
Pressure vessel / membrane housing: Fiberglass Reinforced Plastic / stainless steel
High pressure pipings and valves: stainless steel
Low pressure pipings: stainless steel

3. Applications:

Potable water	Ice manufacturing	Cooling tower
Plating operations	Rinse water	Power plants
Electronics	Beverage production	Metal finishing
Mining industry	Bottled water	Safe drinking water
WFI ( water for injection)	Pharmacy / Pharmaceutical	Dialysis

4. Competitive Advantage:

Technical advantage: years of experience in ultrapure water industry for electronics, pharmcy, etc. We've accumulated lots of know-how in this industry. Our engineer team has rich experience in pharmaceutical water treatment system, automatic welding, engineering, GMP, which enable us to meet even the toughest requirement from different clients. We design and manufacture the most tailored equipment at competitive cost.
