SEA WATER DESALINATION PLANT

Land based 20-150m3/d SWRO Plant

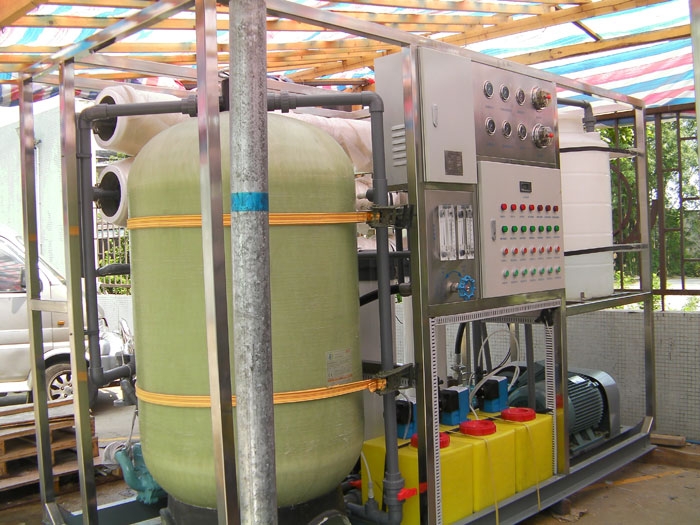

Middle range capacity SWRO 50-60m3/d plant from KELOPURE

Over 20 years of experience in reflected in our quality

Manufactured in the in our ISO 9001:2008 Certified Facilities

Conservatively engineered for reliable, long term performance

Factory tested to ensure trouble-free operation

Heavy duty powder coated frame

Proven components are used throughout the system

Energy recovery included for models S-128F and larger

PLC Controlled Operation


1. Specifications


Model No.

KLS13H

KLS15H

KLS17H

KLS19H

KLS21H

KLS23H

Geometric capacity (cm3/rpm)

191

218

248

280

310

338

Rated flow capacity @1200rpm (m3/hour)

12.9

14.7

16.9

19.1

21.3

23.2

Min outlet pressure (bar)

30

30

30

30

30

30

Max continuous outlet pressure (bar)

80

80

80

80

80

80

Min inlet pressure (bar)

2

2

2

2

2

2

Max continuous inlet pressure (bar)

5

5

5

5

5

5

Max peak inlet pressure (bar)

10

10

10

10

10

10

Max continuous RPM (rpm)

1500

1500

1500

1500

1500

1500

Min continuous RPM (rpm)

700

700

700

700

700

700

Power @rated RPM & 60bar outlet pressure (kw)

25.4

28.3

32.7

37.1

41.3

44.6

Torque @ 60bar outlet pressure (Nm)

202

225

260

295

341

354

Weight (kg)

87.6

87.2

88.4

88

88.9

88.5





2. Descriptions

Inside the pump, there're nine pistons which are parallel to the driven shaft. The nine pistons reciprocate inside the rotating cylinder along the slopping cam plate, then the fluid are conveyed by the volume change incurred by that reciprocating motions.

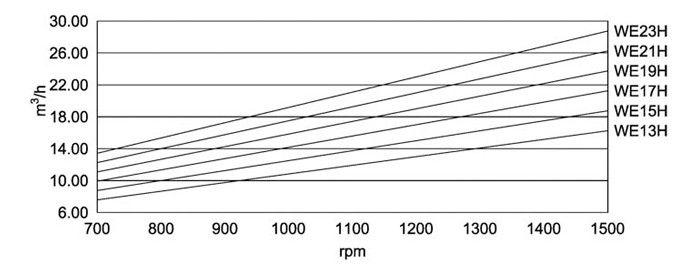

Curve



3. Key features

4. Applications

5. Parts | accessories

6. Competitive advantage

The self lubricating axial piston pump features its smaller size, but macro energy efficiency. Highest outlet pressure is up to 80 bars (8Mpa), All components are made of corrosion resistance materials: Duplex, Super Duplex, carbon fiber reinforced PEEK. The WE series high pressure pump are widely used in high TDS seawater RO desalination, landfill leachate treatment, waste water treatment, etc.
