SEA WATER DESALINATION PLANT
Brackish Desalination Equipment
KELOPURE has been selected by Philippine DAVAO Resort to provide a 454 M3D Desalination System.
KELOPURE International has been awarded the contract to design, build and commission a 454 M3D (120,000 GPD) brackish Seawater Reverse Osmosis plant for the e Resort on DAVAO Island, a. Due to the urgent need for potable water at the resort, the system is being fabricated and shipped on a 2month schedule requirement by contract. The new system will include Mutimedia Filters, Chemical Feed Pretreatment, the SWRO and Chemical Feed Post-treatment. The entire system will be controlled by an our engineer Programmable Logic Controller and a Mitsubishi Variable Frequency Drive. Additionally, they system incorporated a FEDCO High Pressure Booster to reduce the energy demand. Bauer is an international leader in water purification technology for the industrial and municipal markets, with a focus on desalination, member filtration and wastewater treatment systems.
|
technical data |
Feed TDS |
1000-10000 ppm |
|
Feed temperature |
2-40℃ |
|
|
Feed PH |
3月11日 |
|
|
Operation pressure |
1.5-4 Mpa |
|
|
Desalination rate |
>98% |
|
|
Permeate water salinaty |
<500 mg/L |
|
|
Capacity |
120-1500 m3/day |
|
|
Electricity |
380V/50HZ/3PH, other volt upon client |
|
|
Tonnage water consumption |
2 Kwh/T |
|
|
Control |
PLC and touch screen |
|
|
Configuration |
Containerized |
|
|
Instrument |
Flow meter, TDS, pressure gauge |
|
|
Standard Features |
Powder coated carbon steel frame |
|
|
Heavy duty 5 micron cartridge prefilter |
||
|
Chemical dosing |
||
|
Anti corrosion resistant stainless steel pumps |
||
|
PLC based controller panel |
||
|
Liquid filled 316L pressure gauges |
||
|
Product and reject flow meters |
||
|
Spriral wound RO membranes |
||
|
FRP membrane pressure housings up to 1200 psi |
||
|
Low and high pressure switch |
||
|
Permeate TDS monitor |
||
|
Stainless steel high pressure piping |
||
|
Optional |
PH/ORP controller |
|
|
Clean-in-place CIP skid |
||
|
Multimedia prefilter |
||
|
Activated carbon prefilter |
||
|
Ozonation / UV sterilization systems |
||
2. Description:

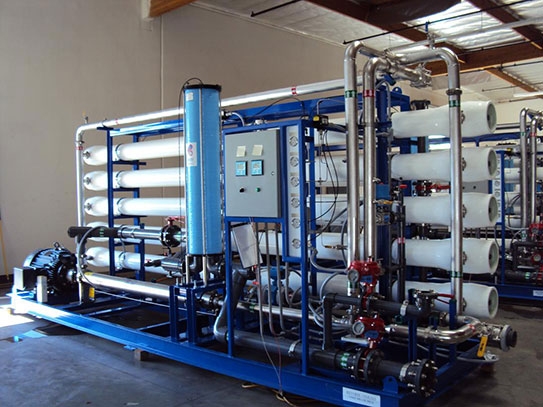

Brackish water reverse osmosis equipment is tasked with purifying water and eliminating salts and other contaminates from many different impure sources. They have the power of blocking bacteria, particles, sugars, proteins, dyes, and other impurities that encompass a molecular weight of more than 150-250 dalton.
Industrial reverse osmosis machines include multimedia prefilters, a water softener, the reverse-osmosis unit with semi-permeable membranes, and an optional UV sterilizer post treatment. These machines apply the technology of reverse osmosis by transporting feed water through multimedia prefilters to take out huge particles and suspended solids. Then the water is transported into a water softener to remove hardness that may cause damage to the membranes within the machine. These pretreatments have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. The water then continues into the reverse osmosis machine where a high pressure pump applies extreme pressure to the highly concentrated solution, separating the remaining salts, minerals, and impurities that the pre-filters couldn’t catch. Fresh, potable water comes out from the low pressure end of the membrane while salts, minerals, and other impurities are discharged into a drain on the other end. Lastly, the water is passed through a UV sterilizer to kill any bacteria and microbes that still exist in the wate
Model selections
|
Model No. |
Permeate |
HPP @ 3 years |
Membranes |
Approx Wt. (Lbs) |
||||
|
GPD |
GPM |
PSI |
HP (50Hz) |
HP (60Hz) |
Qty. |
Array |
||
|
KL-BWRO-28K-1480 |
28,800 |
40 |
240 |
7.5 |
10 |
4 |
1 |
2,300 |
|
KL-BWRO-36K-1580 |
36,000 |
44 |
225 |
10 |
10 |
5 |
1 |
2,400 |
|
KL-BWRO-43K-1680 |
43,000 |
48 |
225 |
15 |
10 |
6 |
1 |
2,500 |
|
KL-BWRO-57K-2480 |
57,000 |
57 |
230 |
15 |
15 |
8 |
1:01 |
2,600 |
|
KL-BWRO-72K-2580 |
72,000 |
67 |
250 |
20 |
15 |
10 |
1:01 |
2,700 |
|
KL-BWRO-87K-3480 |
87,000 |
83 |
230 |
20 |
20 |
12 |
2:01 |
2,800 |
|
KL-BWRO-108K-3580 |
108,000 |
100 |
235 |
25 |
25 |
15 |
2:01 |
3,200 |
|
KL-BWRO-130K-3680 |
130,000 |
120 |
235 |
25 |
25 |
18 |
2:01 |
3,500 |
|
KL-BWRO-144K-4580 |
144,000 |
134 |
235 |
25 |
25 |
20 |
2:02 |
4,200 |
|
KL-BWRO-173K-4680 |
173,000 |
160 |
230 |
25 |
25 |
24 |
3:01 |
4,750 |
3. Applications:
|
Potable water |
Ice manufacturing |
Cooling tower |
|
Plating operations |
Rinse water |
Power plants |
|
Electronics |
Beverage production |
Metal finishing |
|
Mining industry |
Bottled water |
Safe drinking water |
4. Competitive Advantage:
Economical and efficient, the industrial brackish water reverse osmosis machines acquire the latest in RO technology to remove dissolved salts, particles, organics, minerals, solids and other impurites from water. Reverse Osmosis uses RO membranes as its core separation technology to block these impurities. We use the most reputable membranes manufacturers such as Dow Filmtec and Toray.
