120M3/H water treatment UF+RO+EDI system from KELOPURE
UF+RO+EDI system for ultra-pure water treatment water treatment equipment used for produce ultra pure water .
Description

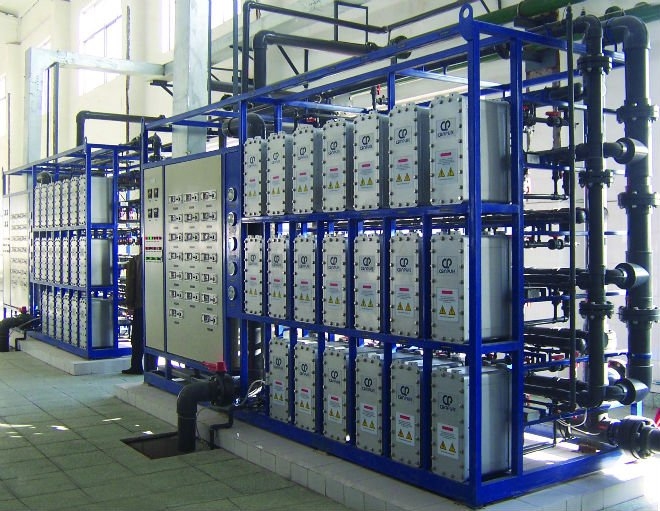

l EDI, electrodeionization. The equipment producing high quality ultra-pure water by mixed technology of electro osmosis and ion exchange, no need of acid and alkali chemicals.
l Desalination rate exceed 99%
l After RO system, EDI system can produce high purity water with electrical resistivity 15-18MΩ.cm
Advantage
l Module design, outlet water of each module have a definite value, biggest single machine output can reach 300 m³/h after combination.
l Simple and full-automatic unmanned operation.
l Small area occupy, low operating cost.
l No need of acid and alkali, no wastewater discharge, meet environmental protection criterion.
Applications
l Field of power, electronics, pharmaceuticals, chemical, food and lab, etc.
Technical parameter
l Inlet water conductivity: 1-20us/cm
l PH: 5-9
l TOC (total organic carbon) : below 0.5mg/L
l Inlet water pressure: ≤0.7MPa
l Water temperature: 5-40°C
l Outlet water quality: ≥15MΩ.cm(25°C)
l Recovery rate: 90-95%
