DRINGKING WATE PLANT
Stainless steel RO Plant

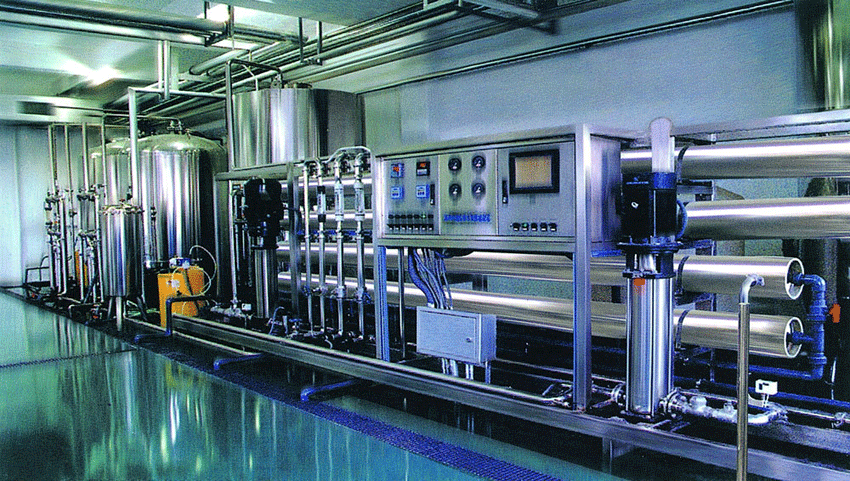

1. PACKAGED RO DRINKING WATER PLANT
Packaged Drinking Water Plant is Skid Mounted System and can be Installed anywhere with a water Inlet. This system consists of Raw water Pump Which Is Taken From Water Tank And Given to Sand Filter And Carbon Filter, Pressure Sand Filter Removes Turbidity, Activated Carbon Filter Removes Smell & Color, Antiscalant Dosing Works For The Reverse Osmosis System So With The Help Of That The Membranes Do Not Chock Up., Micron Cartage Filter Is Used To Remove Heavy Particles Which Comes From The Filters., HP pump Provide Pressure To Membranes and R.O. Membranes Remove Heavy TDS, Hardness, Alkalinity, Iron, Etc. with Pressure Vessels and sophisticated Instruments with Programmed Control Logic for its full proof Operation. System Include the Electrical and Instrumental Control panel PLC Based on Skid. This Design Is Based On the BIS Standards.
We Provide Stainless Steel Storage Tanks with MCF for Fine Polishing of semi treated water after Mineral Adding. The Mineral rich treated water pass through the Ultra Violet System to the Ozonation Re-Circulation tank. The Tanks are with its Stainless Steel pumps and Level Indicator and Controller.
We Recommend the Ozonation for better Product抯 self life once it is packed. Our Ozonation System Create Ozone From Air So Its Self Life Increase and Air purification system before Ozone Preparation to avoid air contamination.
We Provide Stainless Steel Re-Circulating Tank for better dissolution of Ozone in Treated water with re-circulating Pump and Final Product Supply Pump with all Piping and Valves. We also undertake the Piping work from Storage Tanks to Rinsing & Filling Machines
Following Items Included Into Whole Project :
2. Bottle Water Plant
Bottle Water Plant is Skid Mounted System and can be Installed anywhere with a water Inlet. This system consists of Raw water Pump Which Is Taken From Water Tank And Given to Sand Filter And Carbon Filter, Pressure Sand Filter Removes Turbidity, Activated Carbon Filter Removes Smell & Color, Antiscalant Dosing Works For The Reverse Osmosis System So With The Help Of That The Membranes Do Not Chock Up., Micron Cartage Filter Is Used To Remove Heavy Particles Which Comes From The Filters., HP pump Provide Pressure To Membranes and R.O. Membranes Remove Heavy TDS, Hardness, Alkalinity, Iron, Etc. with Pressure Vessels and sophisticated Instruments with Programmed Control Logic for its full proof Operation. System Include the Electrical and Instrumental Control panel PLC Based on Skid. This Design Is Based On the BIS Standards.
We Provide Stainless Steel Storage Tanks with MCF for Fine Polishing of semi treated water after Mineral Adding. The Mineral rich treated water pass through the Ultra Violet System to the Ozonation Re-Circulation tank. The Tanks are with its Stainless Steel pumps and Level Indicator and Controller.
We Recommend the Ozonation for better Product抯 self life once it is packed. Our Ozonation System Create Ozone From Air So Its Self Life Increase and Air purification system before Ozone Preparation to avoid air contamination.
We Provide Stainless Steel Re-Circulating Tank for better dissolution of Ozone in Treated water with re-circulating Pump and Final Product Supply Pump with all Piping and Valves. We also undertake the Piping work from Storage Tanks to Rinsing & Filling Machines
3. Bottle Water Production Line
Bottle Water Production line is Skid Mounted System and can be Installed anywhere with a water Inlet. This system consists of Raw water Pump Which Is Taken From Water Tank And Given to Sand Filter And Carbon Filter, Pressure Sand Filter Removes Turbidity, Activated Carbon Filter Removes Smell & Color, Antiscalant Dosing Works For The Reverse Osmosis System So With The Help Of That The Membranes Do Not Chock Up., Micron Cartage Filter Is Used To Remove Heavy Particles Which Comes From The Filters., HP pump Provide Pressure To Membranes and R.O. Membranes Remove Heavy TDS, Hardness, Alkalinity, Iron, Etc. with Pressure Vessels and sophisticated Instruments with Programmed Control Logic for its full
proof Operation. System Include the Electrical and Instrument Control panel PLC Base on Skid..
We Provide Stainless Steel Storage Tanks with MCF for Fine Polishing of semi treated water after Mineral Adding. The Mineral rich treated water pass through the Ultra Violet System to the Ozonation Re-Circulation tank. The Tanks are with its Stainless Steel pumps and Level Indicator and Controller.
We Recommend the Ozonation for better Product抯 self life once it is packed. Our Ozonation System Create Ozone From Air So Its Self Life Increase and Air purification system before Ozone Preparation to avoid air contamination.
We Provide Stainless Steel Re-Circulating Tank for better dissolution of Ozone in Treated water with re-circulating Pump and Final Product Supply Pump with all Piping and Valves. We also undertake the Piping work from Storage Tanks to Rinsing & Filling Machines
Following Items Included Into Whole Project :
|
|
NO. |
Device Name |
Model |
Material |
Original/Brand |
Unit |
Qty. |
1 |
Raw water pump |
|
Stainless steel |
China/nanfang |
Set |
1 |
2 |
Multi-Media filter |
vessel DN1000*1800 |
FRP/ Stainless Steel |
China/hongjun |
Set |
1 |
Valve DN50 |
UPVC |
China |
Set |
1 |
||
3 |
Carbon filter |
vessel DN1000*1800 |
FRP/ Stainless Steel |
KELOPURE |
Set |
1 |
Valve DN50 |
UPVC |
China |
Set |
1 |
||
4 |
Softener filtr |
vessel DN1000*1800 |
FRP/ Stainless Steel |
KELOPURE |
Set |
1 |
5 |
Micro filter |
vessel DN220*1000 |
Sus304 |
KELOPURE |
Set |
1 |
6 |
High pressure pump |
|
Stainless Steel |
China/nanfang |
Set |
1 |
7 |
RO membrane |
|
|
USA/DOW/GE |
Set |
1 |
8 |
Control Box |
KLDR-8000 |
Combination |
KELOPURE |
Set |
1 |
